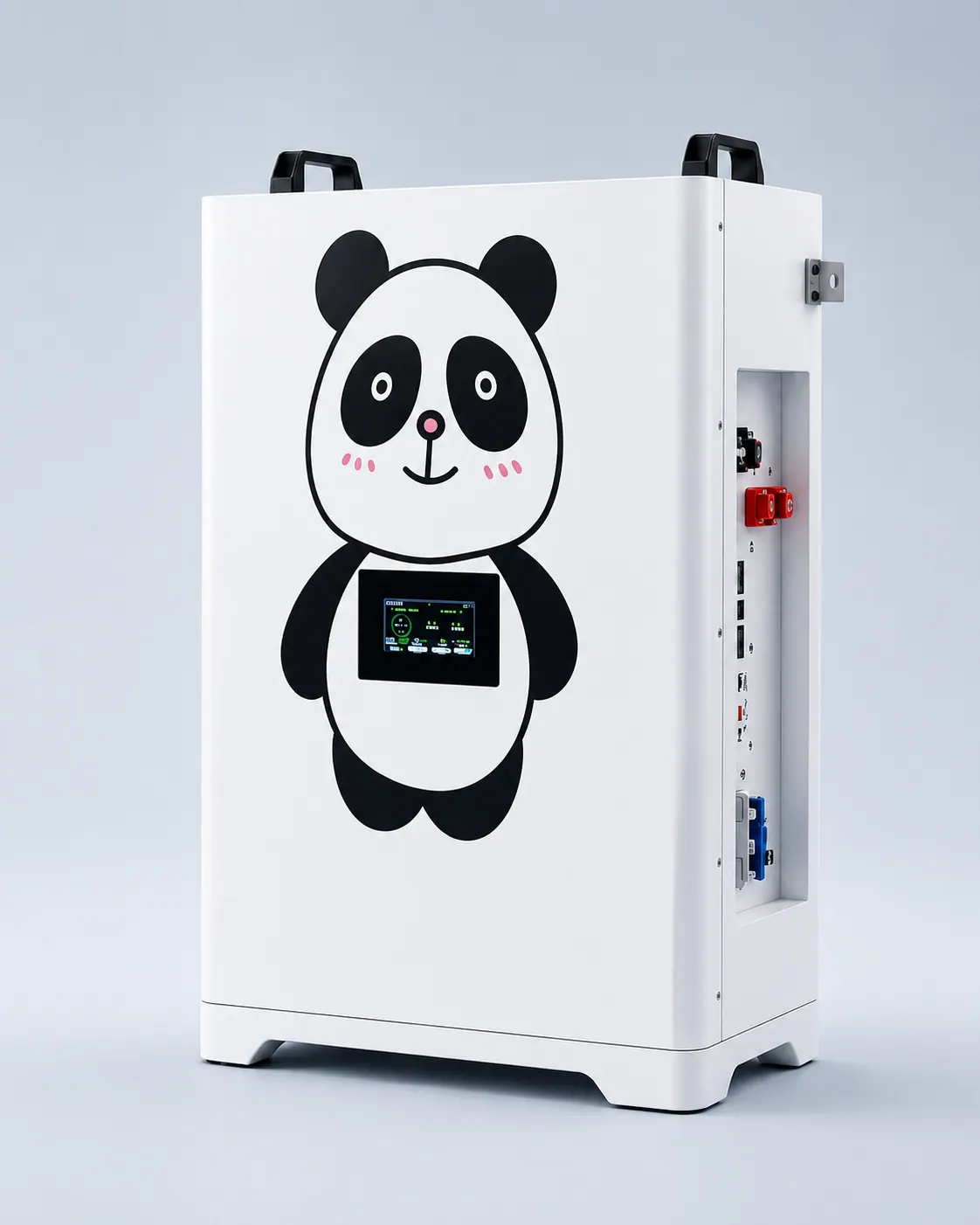

16.1 kWh · 51.2V
16.1 kWh Panda Edition
EVE MB31 314Ah LiFePO₄
- Capacity
- 314Ah
- Weight
- 125kg
FOR INSTALLERS & DISTRIBUTORS
Energy storage for your next installation.
51.2V LiFePO₄ battery systems and EVE / CATL cells for installers, distributors and project partners.
Compare models. Share your project. Discuss supply.
- 16–32 kWh
- Nominal energy
- 51.2 V
- Nominal voltage
- LiFePO₄
- Battery
How a storage system works
Solar panels
Inverter
Home load
Battery
Utility grid
Solar powers the home and charges the battery; stored energy can supply loads later.
System illustration; functions depend on the inverter and configuration.
Free · no registration
Plan your home energy, for free
Calculate solar and inverter first, choose a battery next, then estimate costs and payback. All three are free and pass results forward.
01
Solar size & generation
Estimate generation from location and area, with an automatically matched inverter.
Start calculation 02Home battery sizing
Deduct direct daytime solar to estimate battery needs and full-charge duration.
Start calculation 03Solar + storage payback
Use local electricity rates and installation costs to estimate savings and payback.
Start calculation51.2V · LiFePO₄
Three capacities. A clearer choice.
Compare verified product data, then open a model for its specifications and quotation.
Selection guide & model comparison ↗

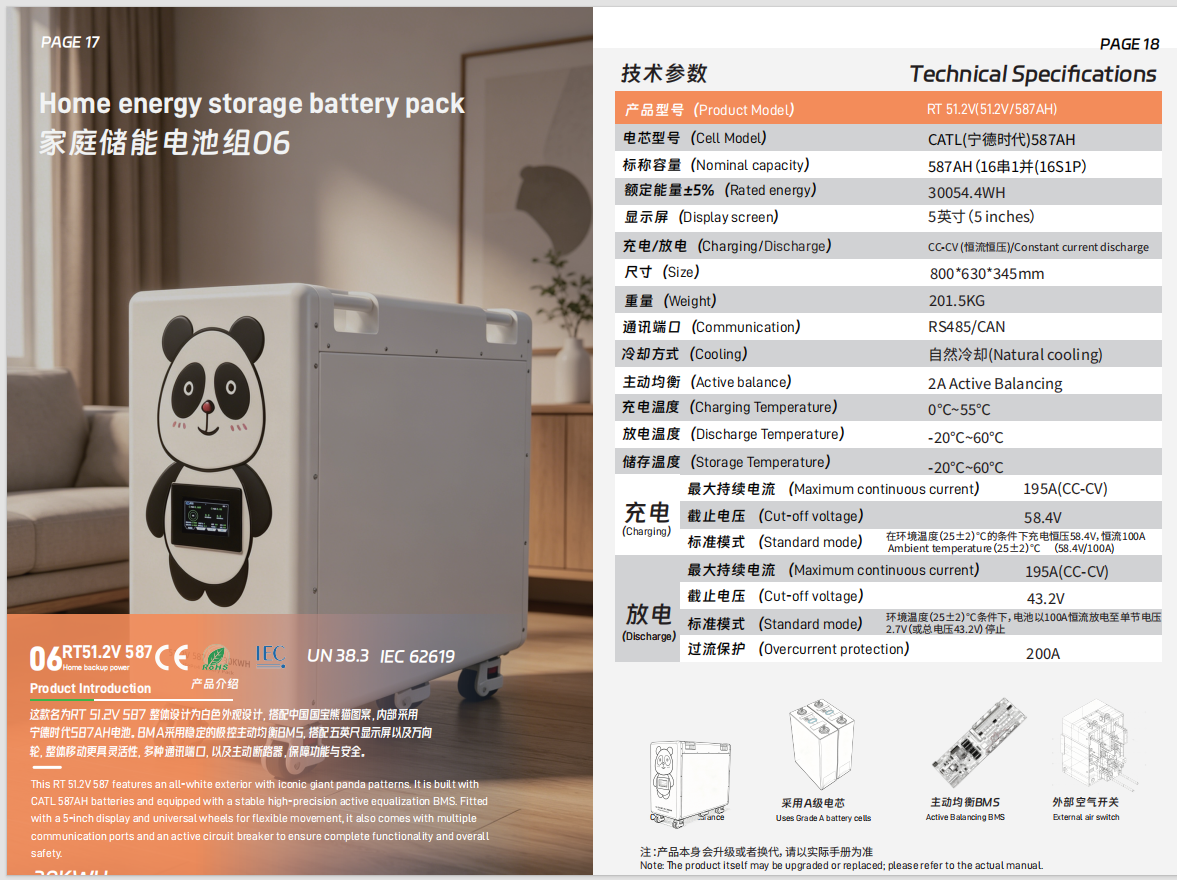

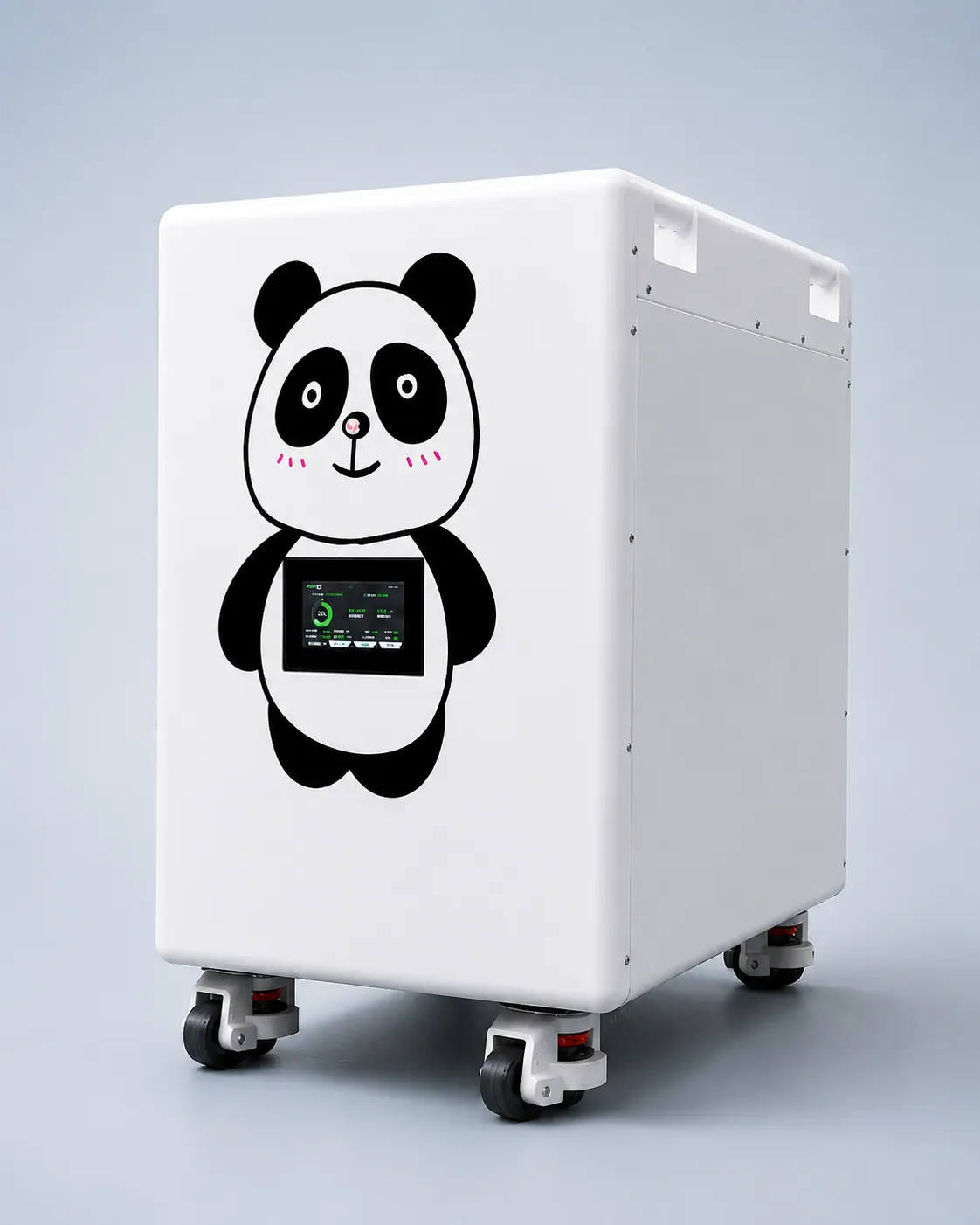

30.1 kWh · 51.2V
30.1 kWh Panda Edition
CATL 587Ah LiFePO₄
- Capacity
- 587Ah
- Weight
- 201.5kg

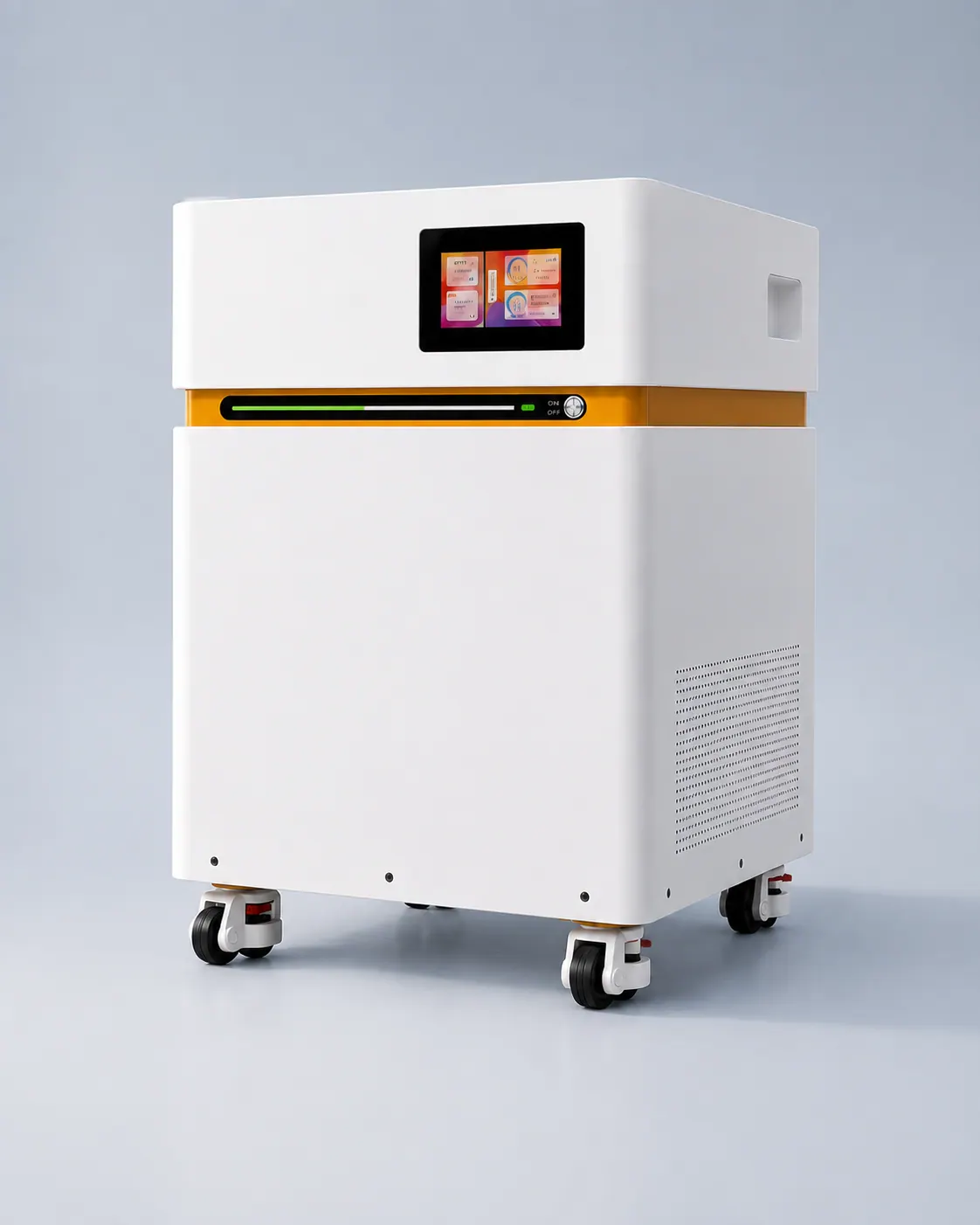

32.2 kWh · 51.2V
32.2 kWh Display Edition
EVE MB56 628Ah LiFePO₄
- Capacity
- 628Ah
- Weight
- 236kg
LANTUVIA HFP · 48V
Complete your storage system with an HFP inverter.
Two power ratings, one 48V battery platform. Compare solar inputs, charging limits and installation dimensions, then discuss a matched battery and inverter package.
Compare both models ↗

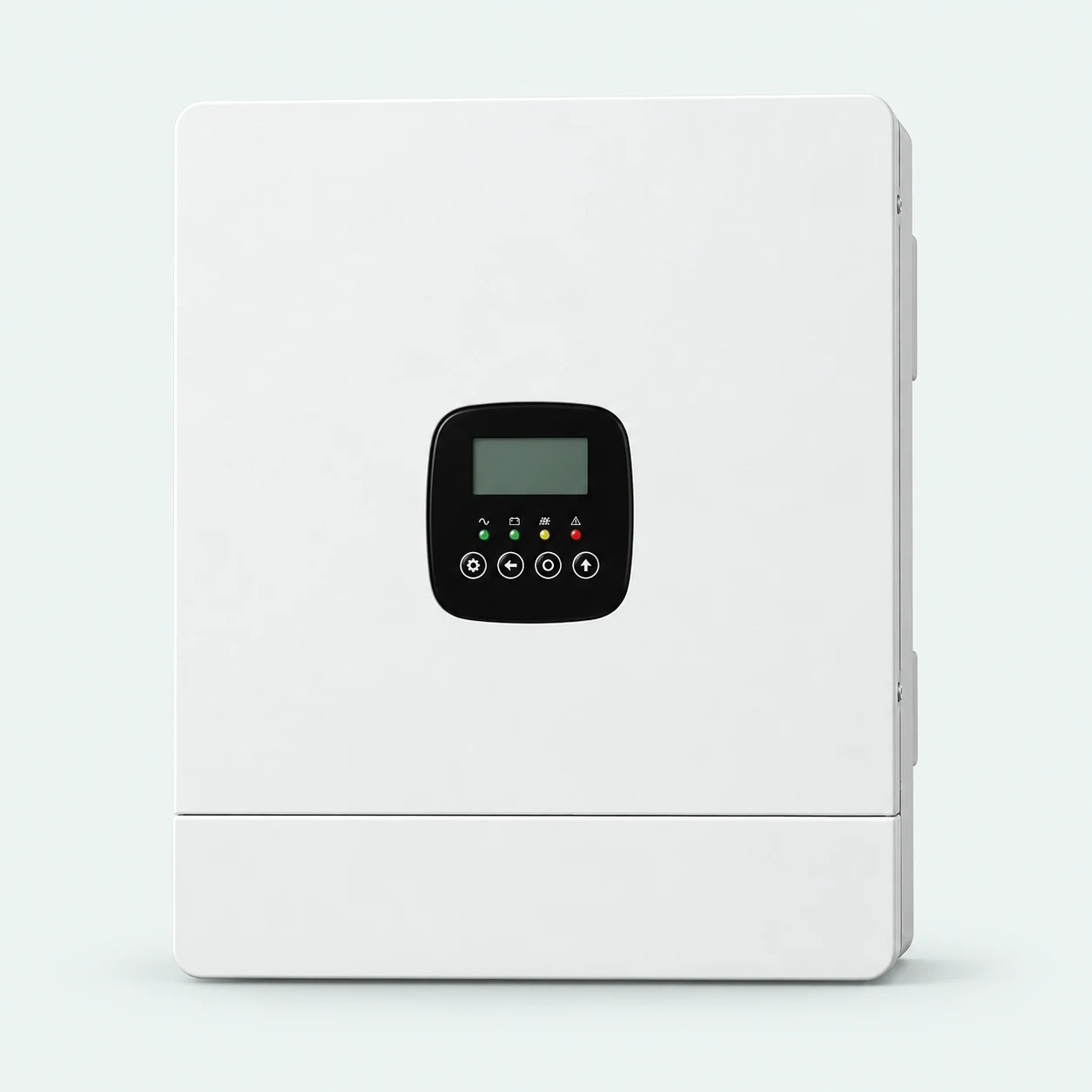

HFP63248 · Single MPPT
HFP 6.3 kW
6.3kW single-phase output with one MPPT input, up to 7,000W PV input and 120A maximum charging. A compact wall-mounted option for solar and storage projects.
- Max. PV input power
- 7,000 W
- Max. total charging current
- 120 A
- Net weight
- 8 kg

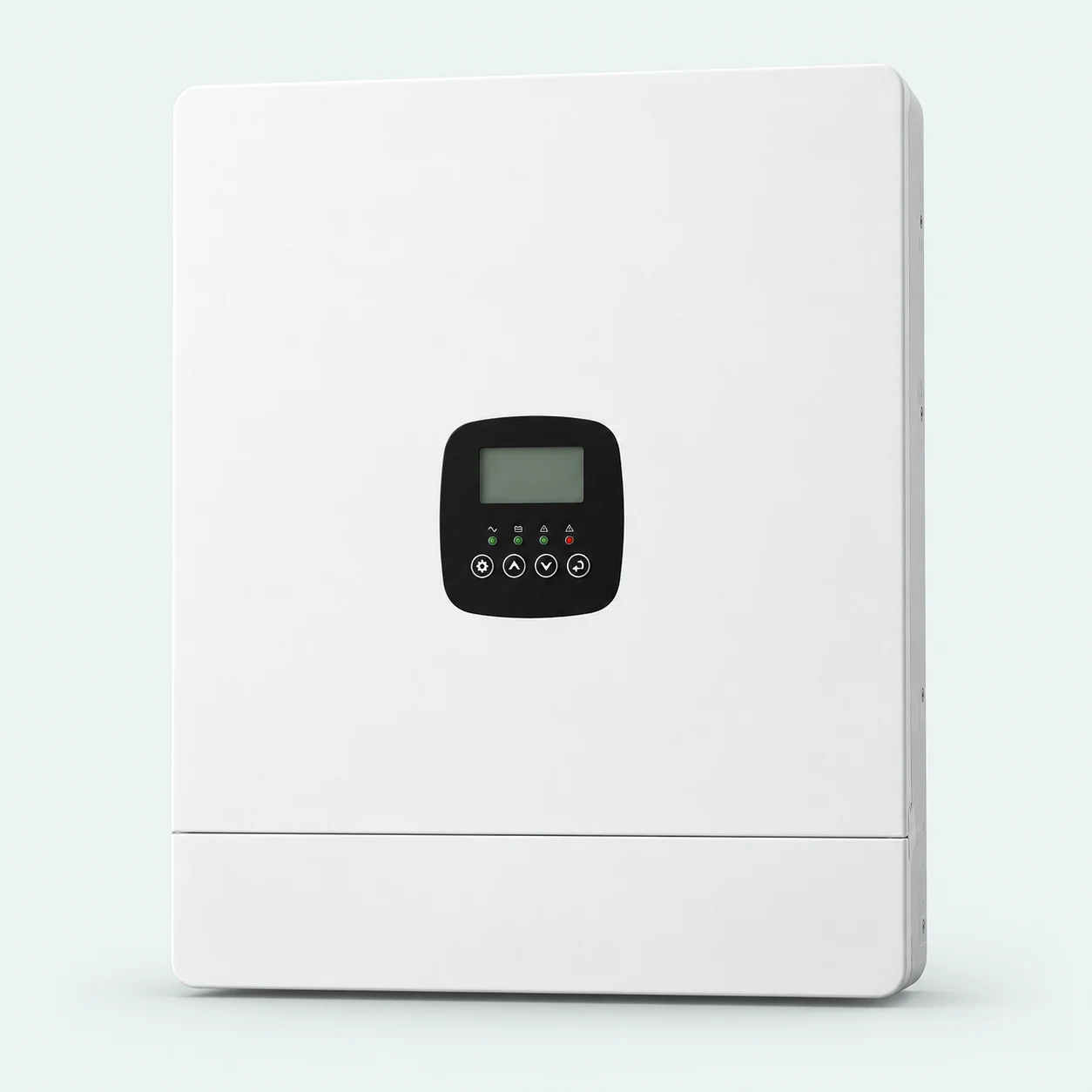

HFP123248 · Dual MPPT
HFP 12.3 kW
12.3kW single-phase output with two independent MPPT inputs, 6,000W PV input per channel and 180A maximum charging. Compare for projects with two separate PV arrays.
- Max. PV input power
- 6,000 W × 2
- Max. total charging current
- 180 A
- Net weight
- 14.7 kg

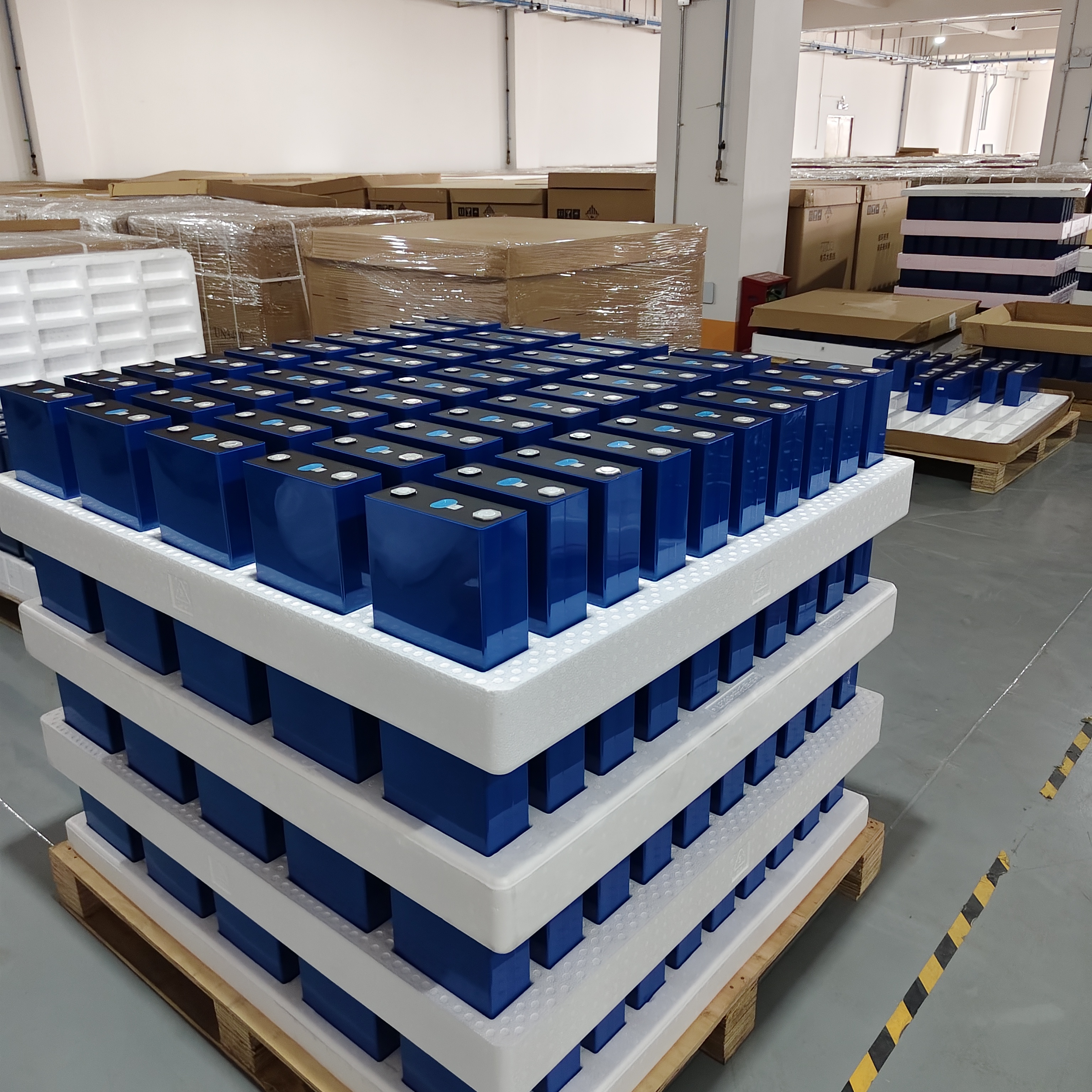

EVE / CATL · LiFePO₄
Energy-storage cells
EVE and CATL LiFePO₄ cells. View dimensions, model references and matched battery systems.
Battery cells ↗

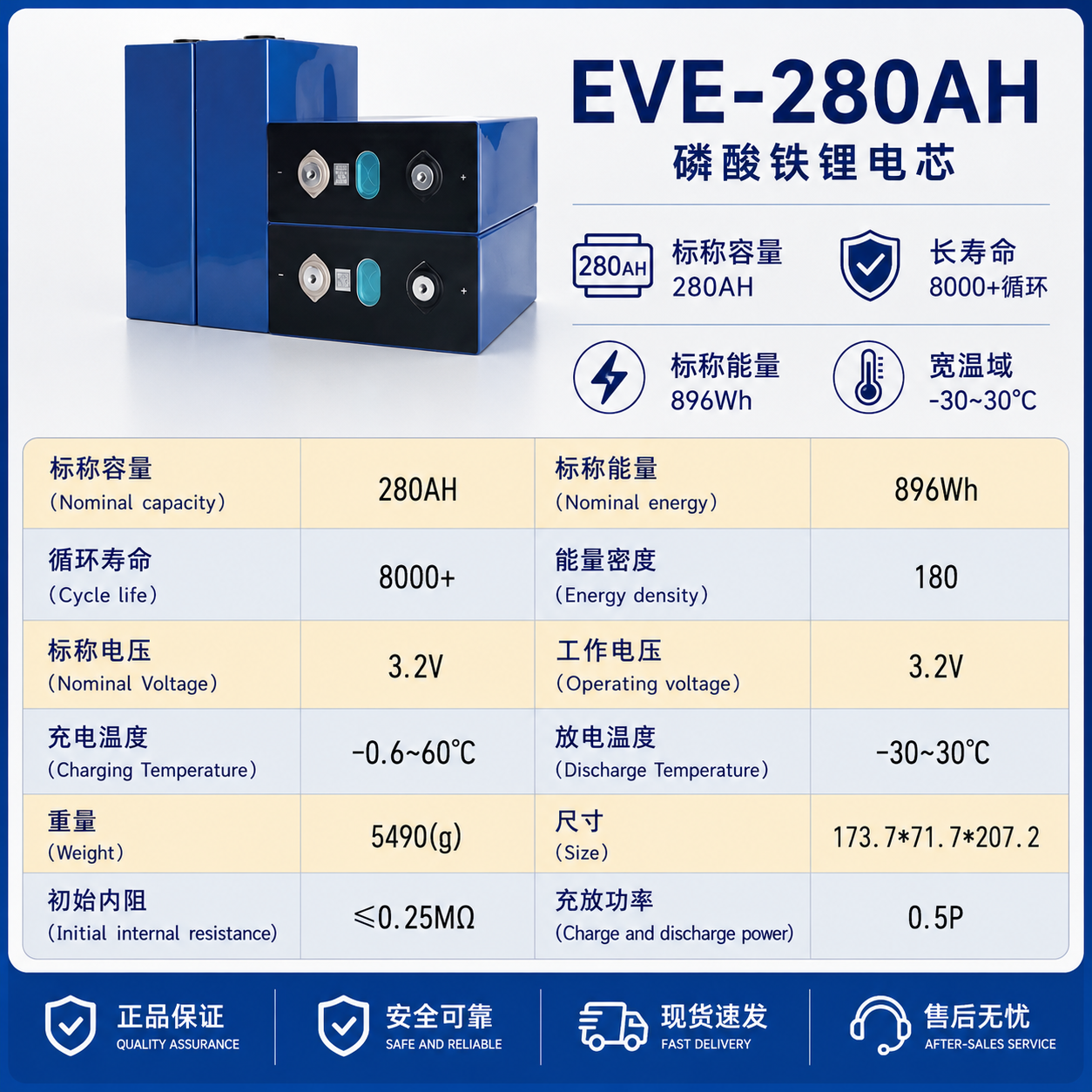

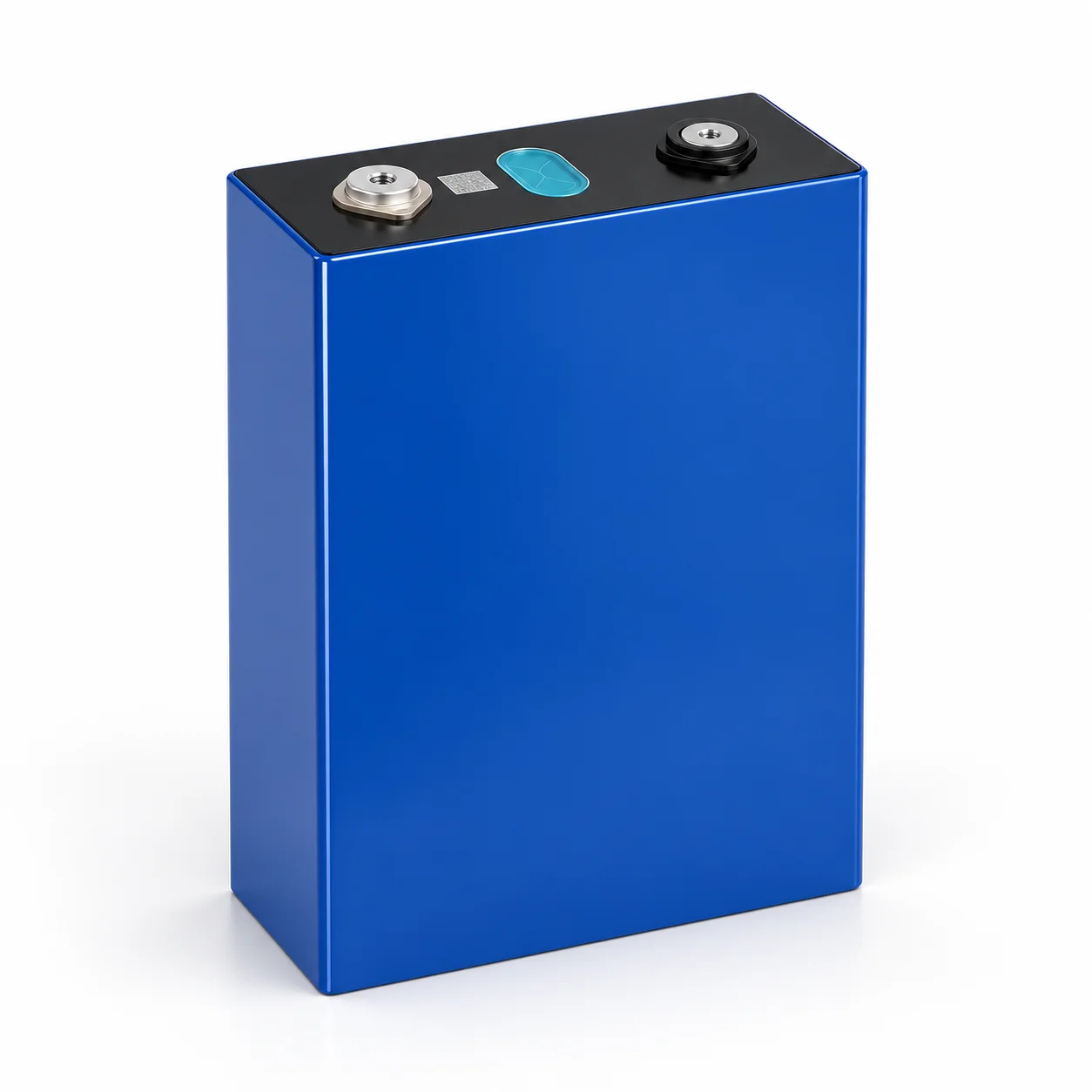

EVE · LiFePO₄
280Ah
- Capacity
- 280 Ah
- Nominal voltage
- 3.2 V
- Nominal energy
- 896 Wh
Reference price per cell$48Price excludes studs
Full specifications & battery options
- Dimensions
- 173.7 × 71.7 × 207.2 mmWidth W × Depth D × Height H
- Weight
- 5.5 kg
Exact model to be confirmed. Cycle, rate, temperature and resistance data can be supplied with your quotation.
Matching packs & inquiry
No matched battery system is currently listed. Contact us about a pack solution.
Contact our customer service team to customize cells with welded studs.
Ask about welded studs ↗

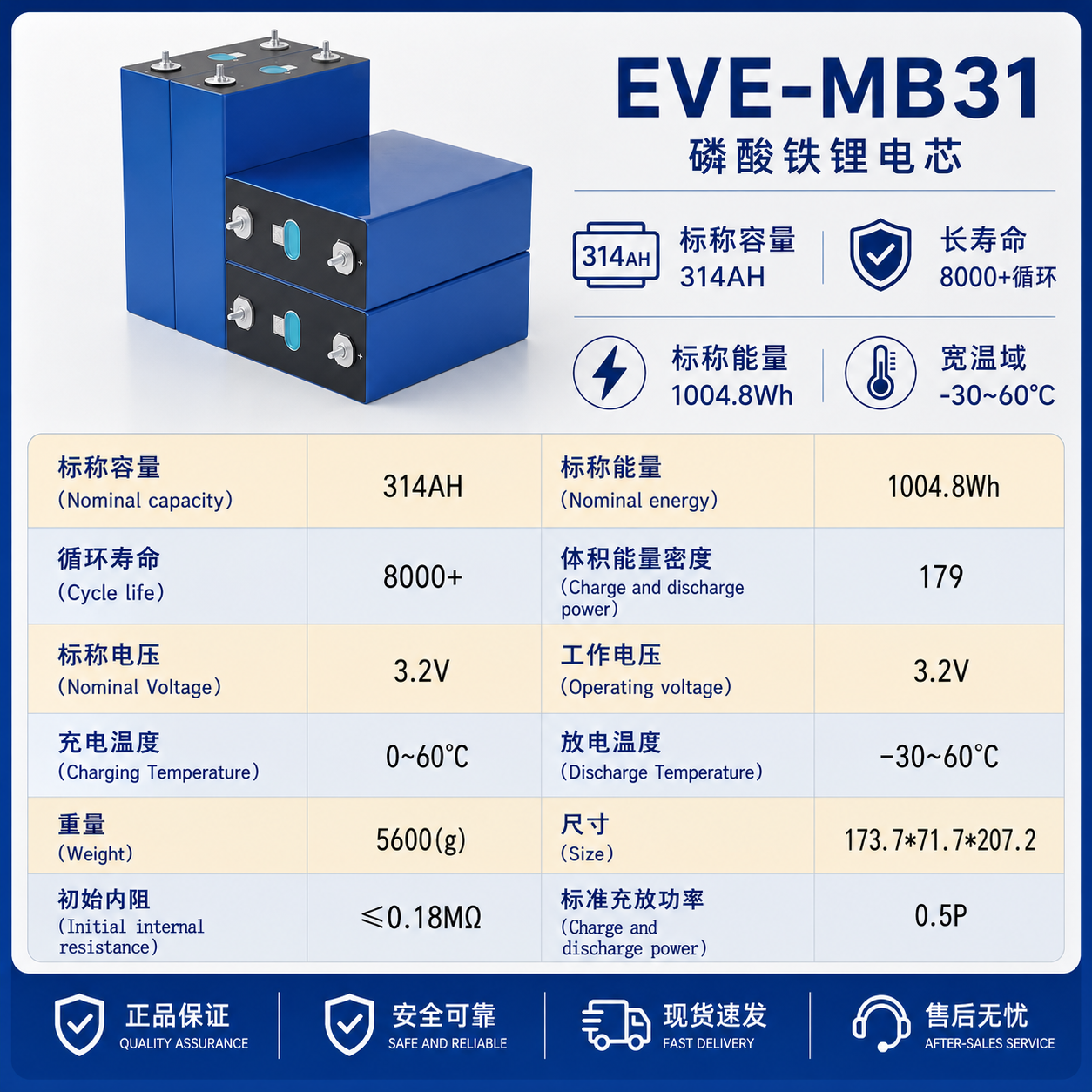

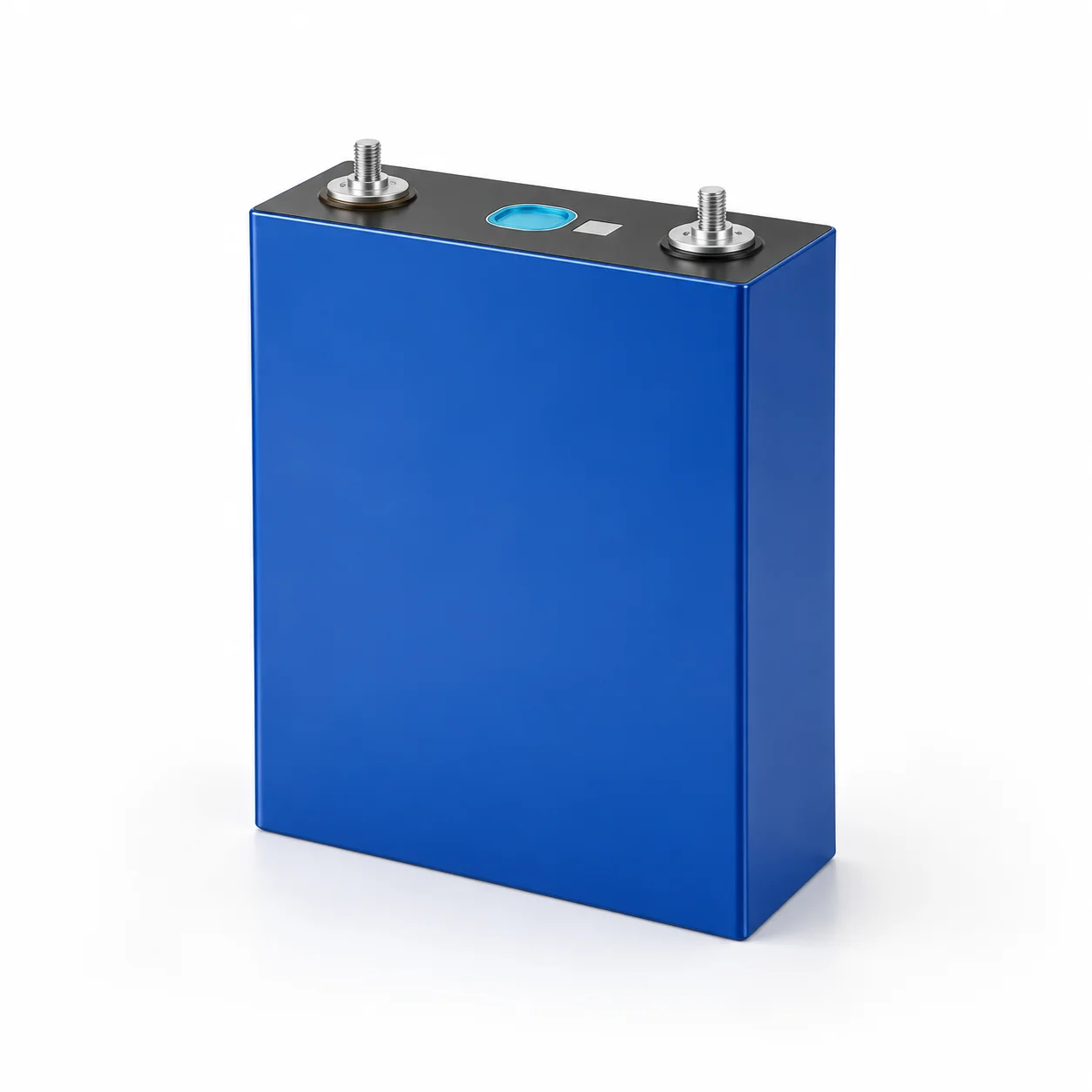

EVE · LiFePO₄
MB31 314Ah
- Capacity
- 314 Ah
- Nominal voltage
- 3.2 V
- Nominal energy
- 1004.8 Wh
Reference price per cell$57Price excludes studs
Full specifications & battery options
- Dimensions
- 173.7 × 71.7 × 207.2 mmWidth W × Depth D × Height H
- Weight
- 5.5 kg
- Manufacturer cycle reference
- 8000 cycles25°C · 0.5P/0.5P · 70% capacity retention
- Standard charge / discharge rate
- 0.5P / 0.5P
- Charge temperature
- 0–60°C
- Discharge temperature
- −30–60°C
- Initial internal resistance
- 0.18 ± 0.05 mΩ
- Charge voltage limit
- 3.65 V
Matching packs & inquiry
Contact our customer service team to customize cells with welded studs.
Ask about welded studs ↗

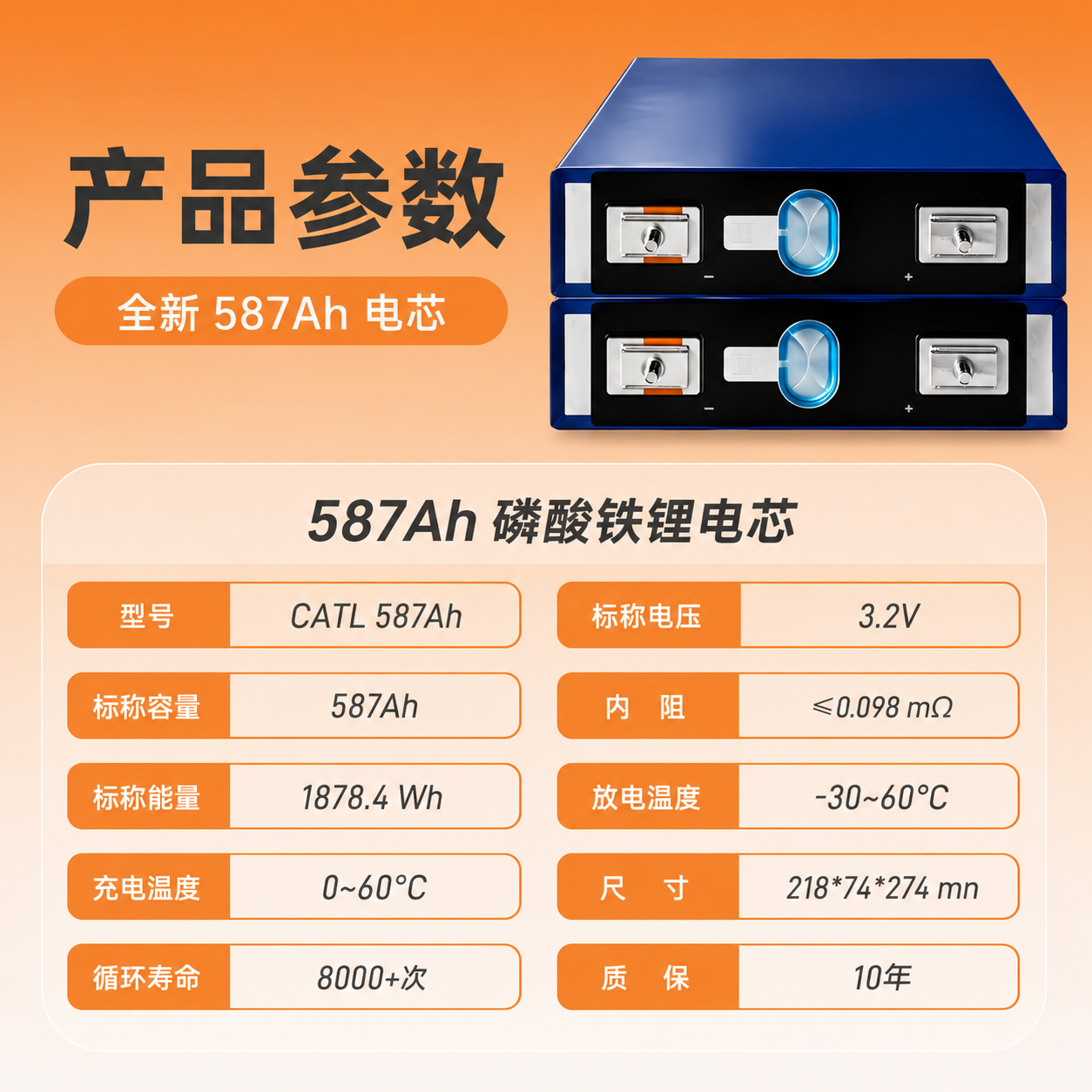

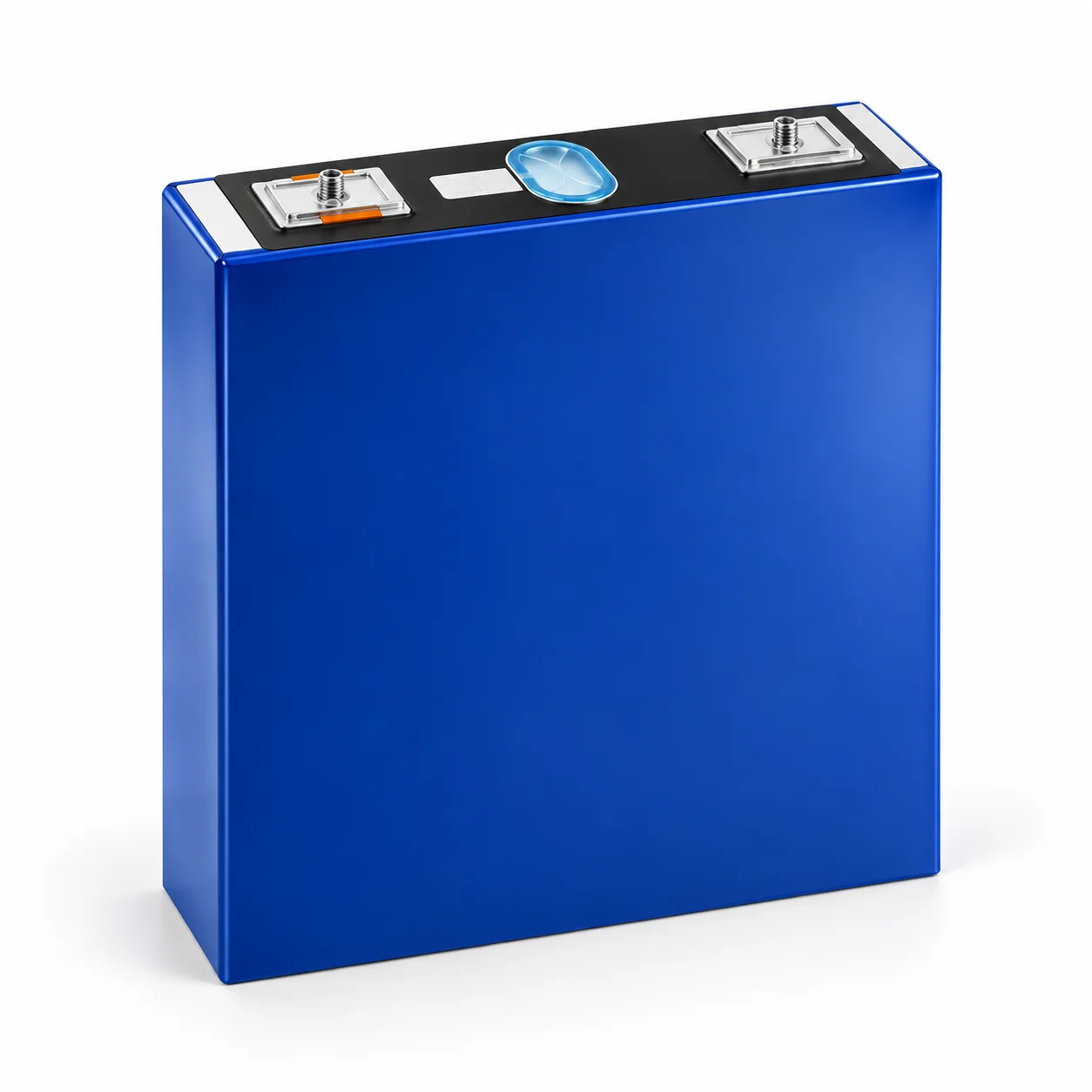

CATL · LiFePO₄
587Ah
- Capacity
- 587 Ah
- Nominal voltage
- 3.2 V
- Nominal energy
- 1878.4 Wh
Reference price per cell$90Price excludes studs
Full specifications & battery options
- Dimensions
- 218 × 74 × 274 mmWidth W × Depth D × Height H
- Weight
- 9.83 kg
- Manufacturer cycle reference
- ≥8000 cycles25°C · 0.5P/0.5P · 70% capacity retention
- Standard charge / discharge rate
- 0.5P / 0.5P
- Volumetric energy density
- 434 Wh/L
- Initial energy efficiency
- 96.5%
Confirm current and temperature limits against the supplied specification.
Matching packs & inquiry
Contact our customer service team to customize cells with welded studs.
Ask about welded studs ↗

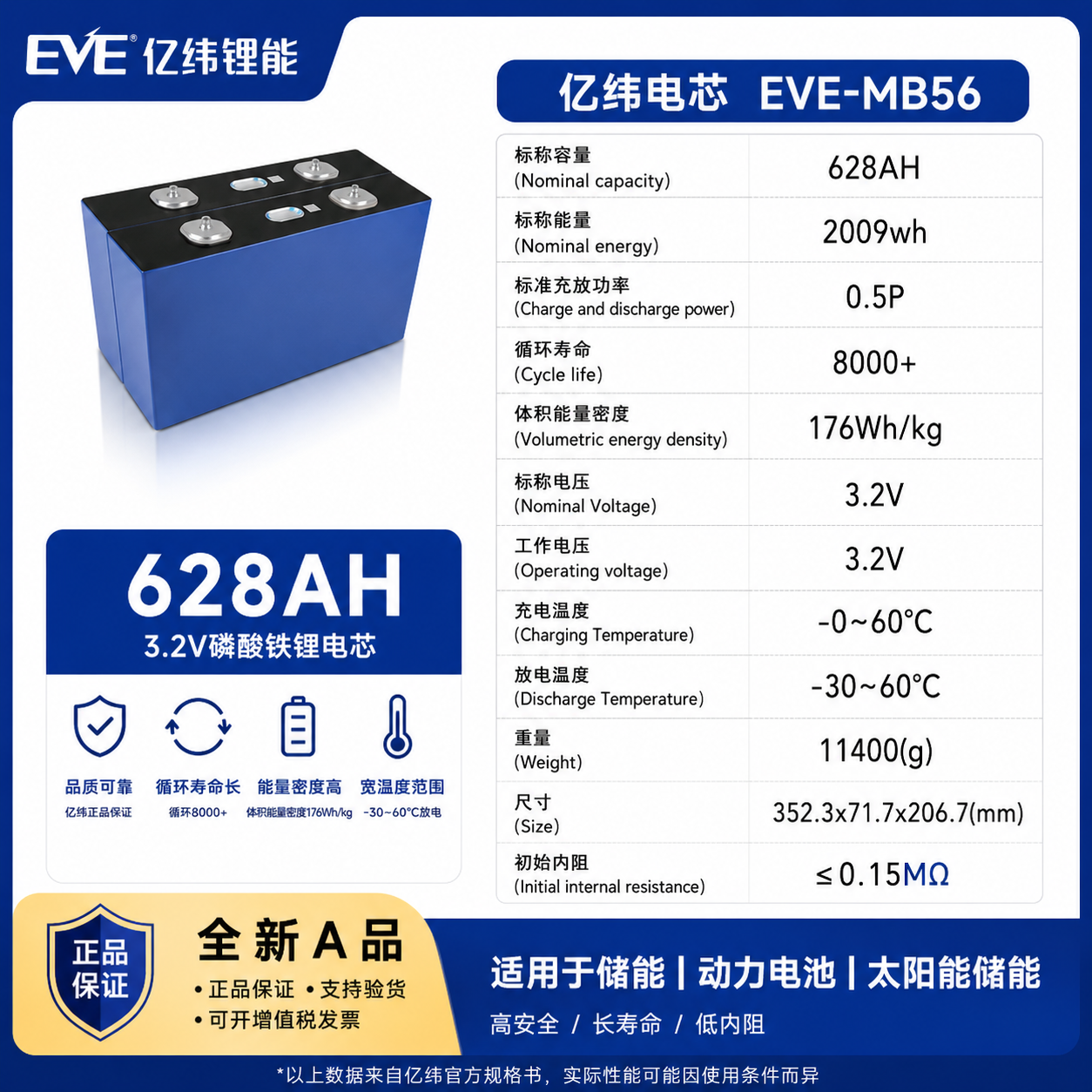

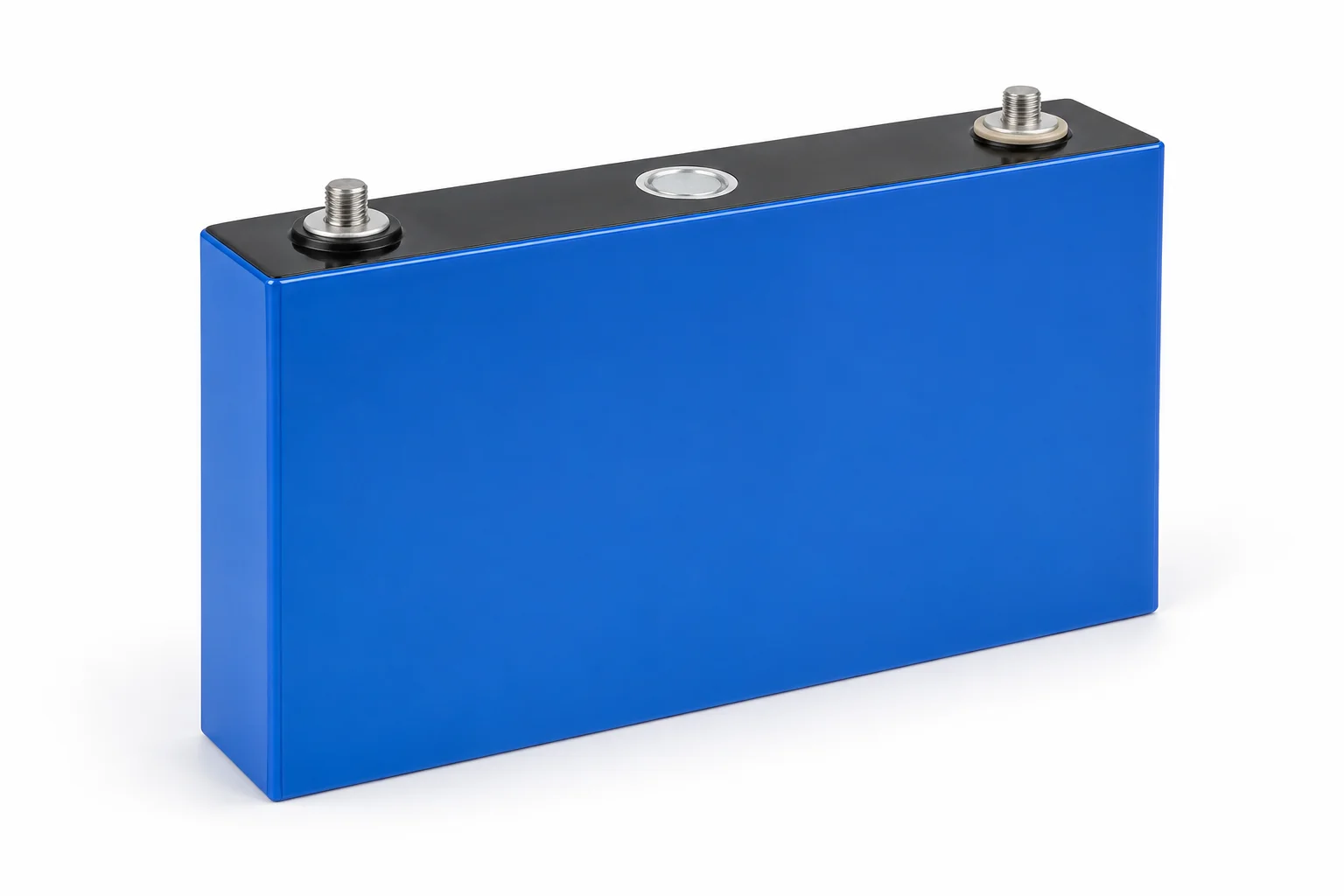

EVE · LiFePO₄
MB56 628Ah
- Capacity
- 628 Ah
- Nominal voltage
- 3.2 V
- Nominal energy
- 2009.6 Wh
Reference price per cell$102Price excludes studs
Full specifications & battery options
- Dimensions
- 352.2 × 71.7 × 206.7 mmWidth W × Depth D × Height H
- Weight
- 11.4 kg
- Manufacturer cycle reference
- 8000 cycles25°C · 0.5P/0.5P · 70% capacity retention
- Standard charge / discharge rate
- 0.5P / 0.5P
- Charge temperature
- 0–60°C
- Discharge temperature
- −30–60°C
- Initial internal resistance
- ≤0.25 mΩ
Matching packs & inquiry
Contact our customer service team to customize cells with welded studs.
Ask about welded studs ↗| Cell option | Core specifications | Performance & operating conditions | Matching packs & inquiry |
|---|---|---|---|
| EVE280AhSpecifications & quote ↗ |
| Exact model to be confirmed. Cycle, rate, temperature and resistance data can be supplied with your quotation. | No matched battery system is currently listed. Contact us about a pack solution. Reference price per cell$48Price excludes studs Contact our customer service team to customize cells with welded studs. Ask about welded studs ↗ |
| EVEMB31 314AhSpecifications & quote ↗ |
|
| Reference price per cell$57Price excludes studs Contact our customer service team to customize cells with welded studs. Ask about welded studs ↗ |
| CATL587AhSpecifications & quote ↗ |
|
Confirm current and temperature limits against the supplied specification. | Reference price per cell$90Price excludes studs Contact our customer service team to customize cells with welded studs. Ask about welded studs ↗ |
| EVEMB56 628AhSpecifications & quote ↗ |
|
| Reference price per cell$102Price excludes studs Contact our customer service team to customize cells with welded studs. Ask about welded studs ↗ |
Cycle figures are manufacturer references under the stated test conditions. P is a power rate; assembled battery performance depends on the BMS and supplied configuration.
LANTUVIA ENERGY

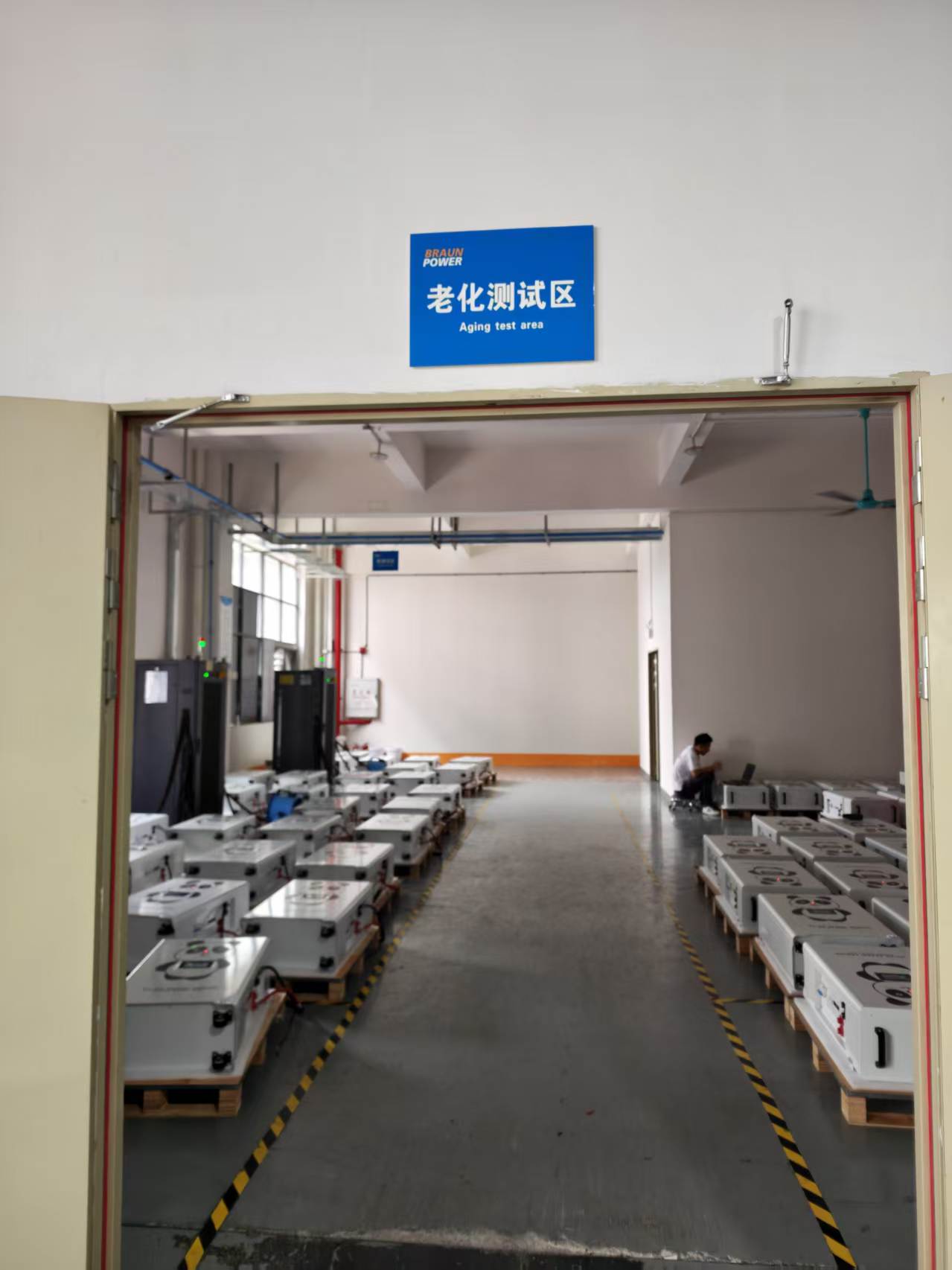

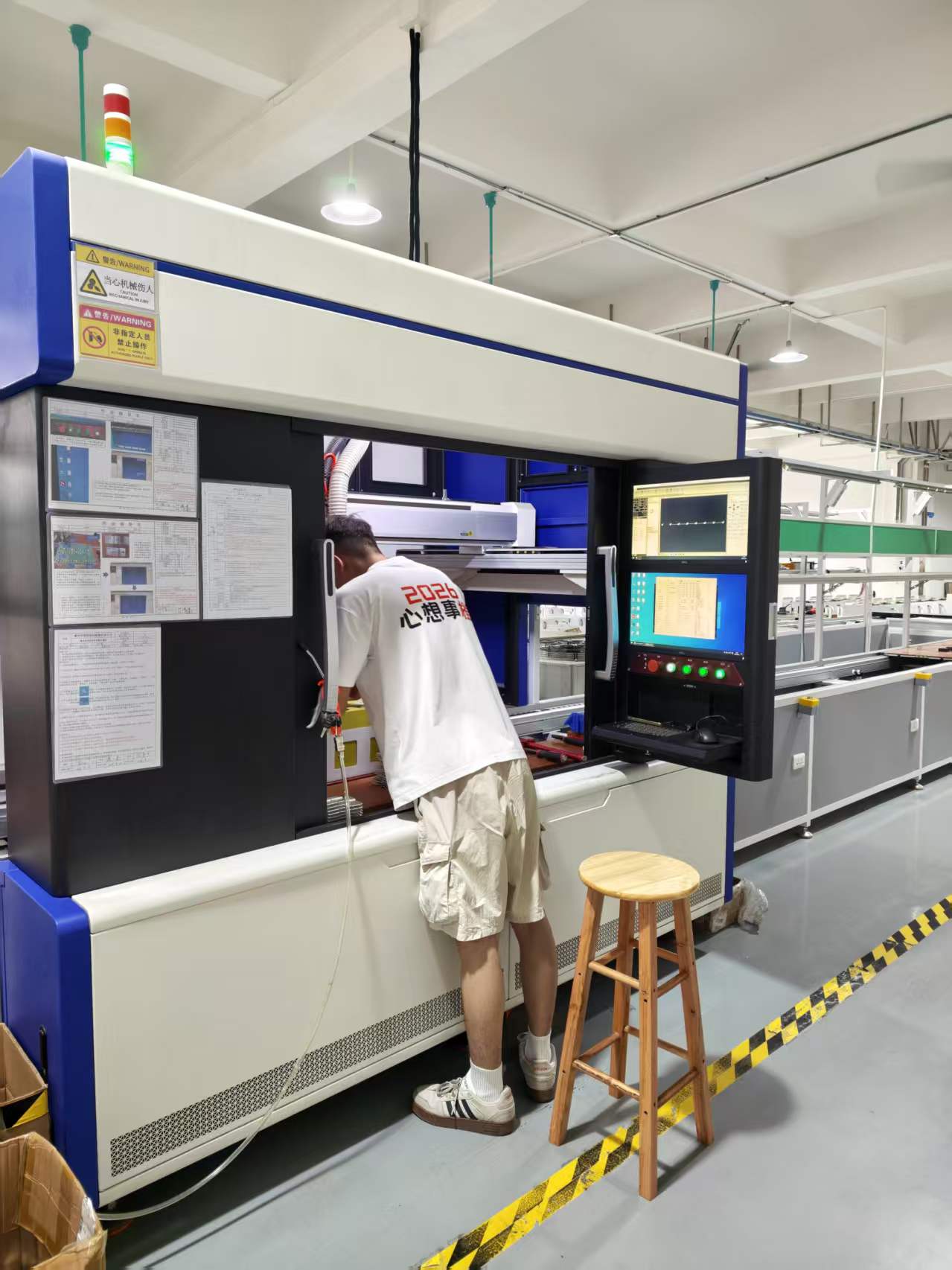

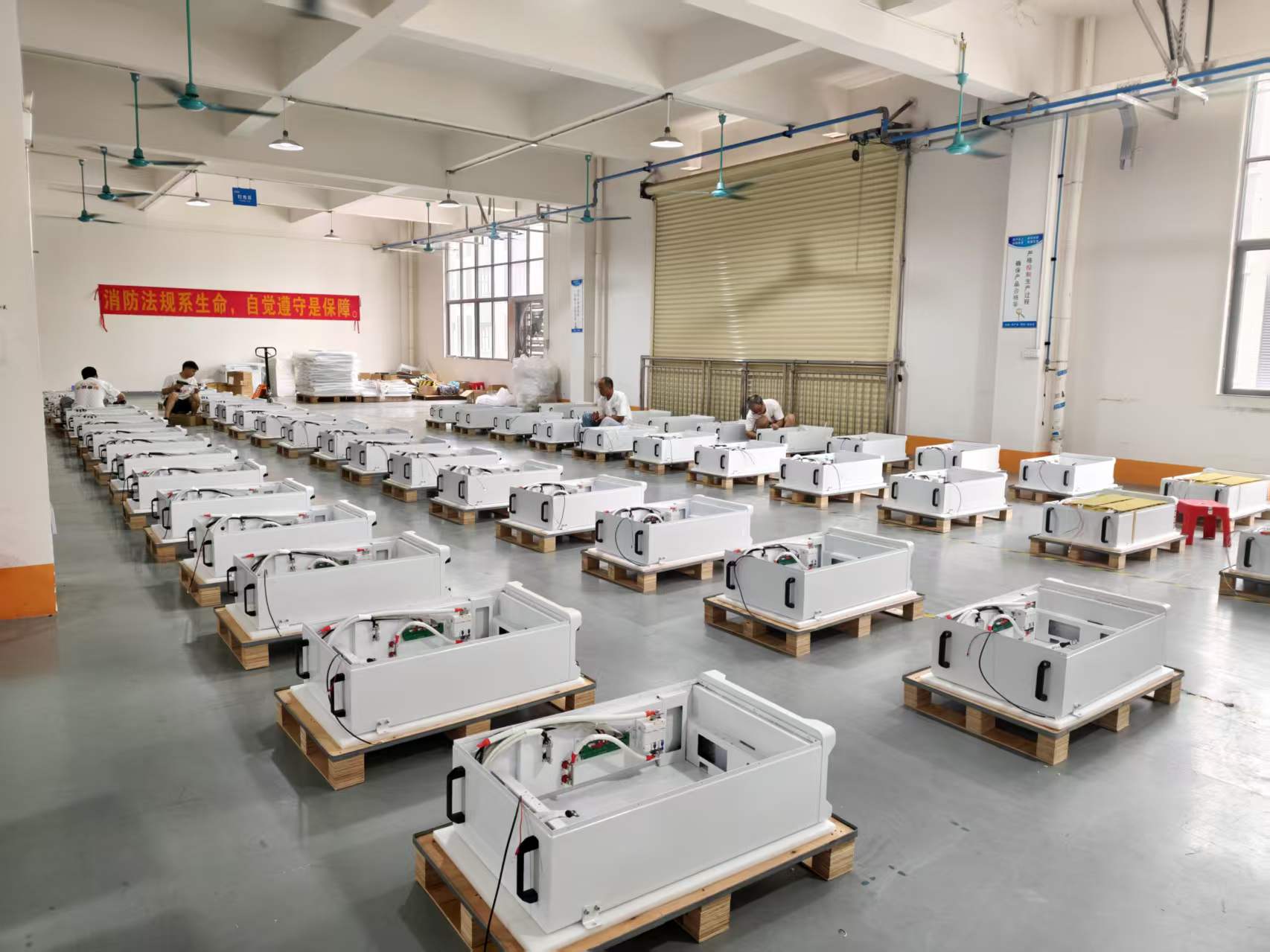

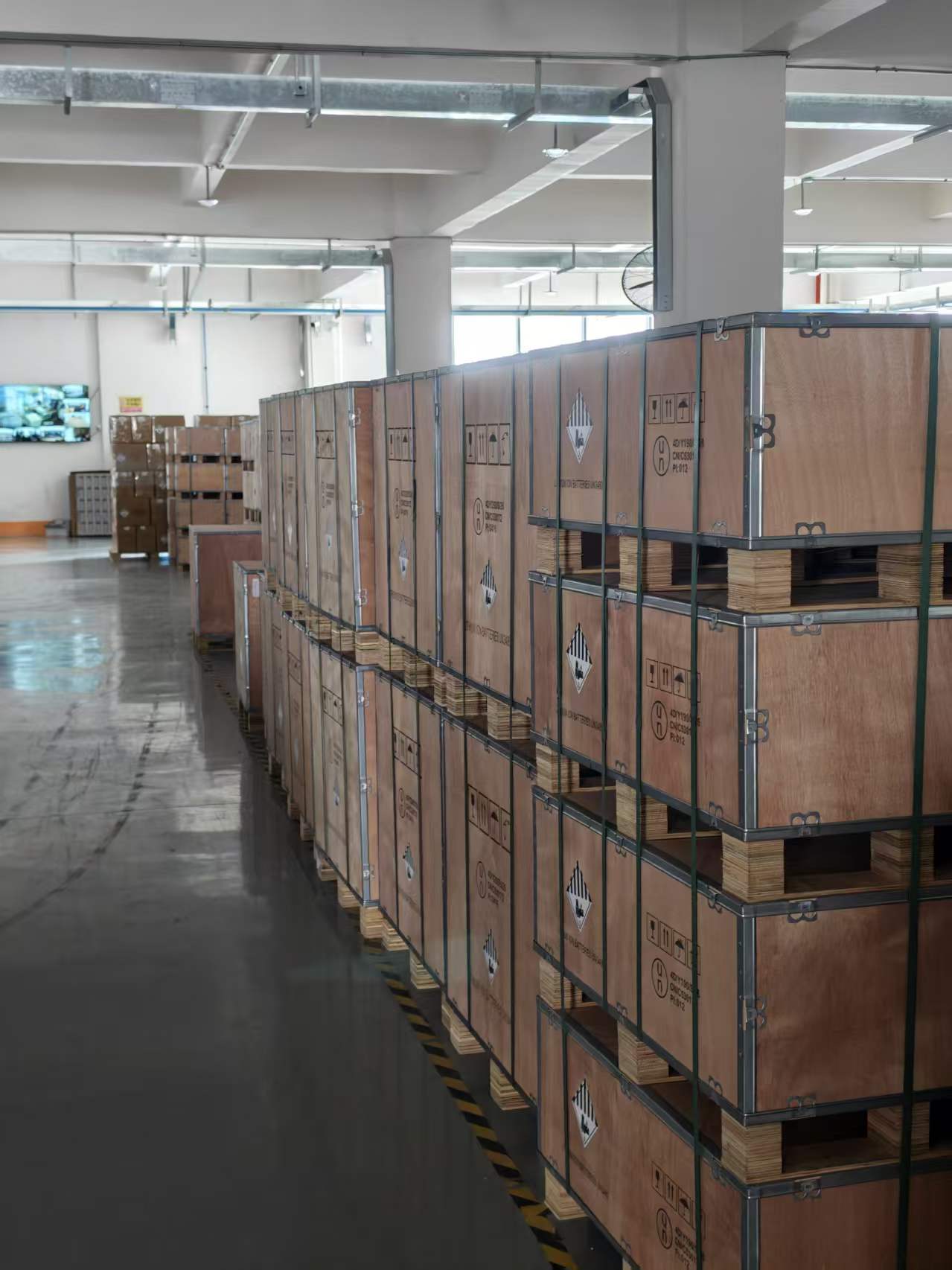

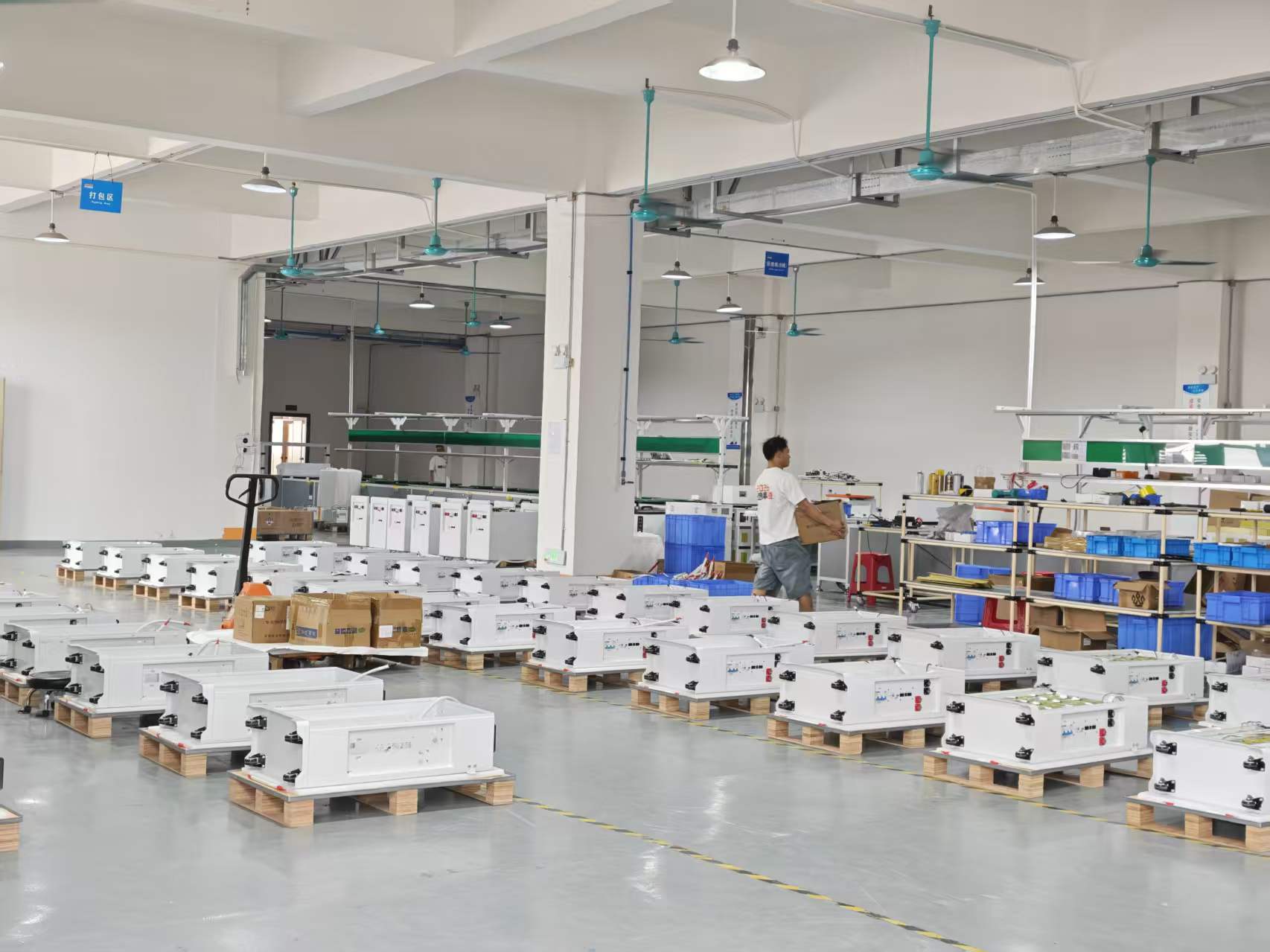

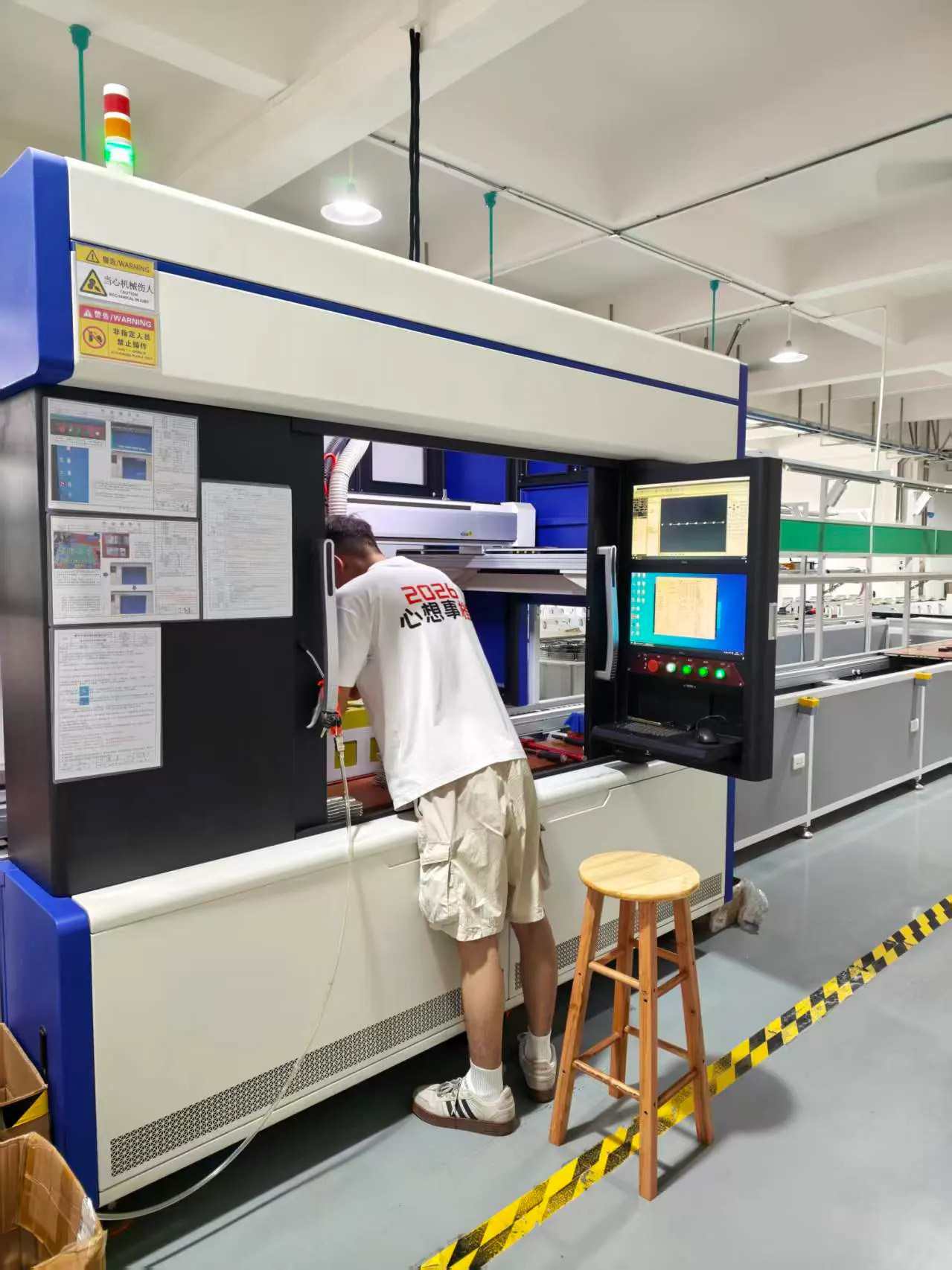

Manufacturing & delivery
Explore assembly, testing and export preparation. Request documentation for your specific model and destination.
More workshop photos
About LANTUVIA
LANTUVIA ENERGY is operated by Dongguan Langtu Energy Storage Battery Co., Ltd., established in 2025. We supply residential storage batteries and LiFePO₄ cells.
Room 202, Building 2, No. 467, Dalingshan Section, Guanchang Road, Dalingshan Town, Dongguan, Guangdong, ChinaProduct documentation
Request the model datasheet and available test or transport documents with your inquiry.
Tell us about your project →Installer & distributor inquiries
From product selection to project quotation.
Start with the information that helps us understand your installation or distribution requirements.
Tell us about your project
Share the destination, product and estimated quantity. Include the inverter model if known.
Confirm the details
Discuss model-specific specifications, available documents and communication compatibility.
Receive a quotation
Pricing, freight, lead time and applicable terms are confirmed for your destination and quantity.
LANTUVIA · Installer & distributor inquiries
Discuss your project
Tell us the product, quantity and destination. We will use these details to respond to your inquiry.
