LANTUVIA HFP · 48V · MPPT
Compare LANTUVIA HFP 6.3kW and 12.3kW hybrid solar inverters for installers and distributors. 48V battery systems, single-phase AC output and integrated MPPT solar charging.
HFP63248 · Single MPPT
6.3kW single-phase output with one MPPT input, up to 7,000W PV input and 120A maximum charging. A compact wall-mounted option for solar and storage projects.
HFP123248 · Dual MPPT
12.3kW single-phase output with two independent MPPT inputs, 6,000W PV input per channel and 180A maximum charging. Compare for projects with two separate PV arrays.
HFP63248 / HFP123248
Compare the main selection parameters. Open either product for all supplied specifications.
Swipe sideways to compare all models
| Technical specifications | HFP 6.3 kW ↗HFP63248 | HFP 12.3 kW ↗HFP123248 |
|---|---|---|
| Rated output power | 6.3 kW | 12.3 kW |
| MPPT inputs | 1 | 2 |
| Max. PV input power | 7,000 W | 6,000 W × 2 |
| MPPT voltage range | 80–450 VDC | 80–450 VDC |
| Max. PV input current | 27 A | 22 A × 2 |
| Rated battery voltage | 48 VDC | 48 VDC |
| Battery voltage range | 42–60 VDC · default | 42–60 VDC · default |
| Max. PV charging current | 120 A | 180 A |
| Max. utility charging current | 80 A | 120 A |
| Max. total charging current | 120 A | 180 A |
| Rated AC output voltage | 220 / 230 / 240 VAC | 220 / 230 / 240 VAC |
| Rated AC output current | 28.6 / 27.4 / 26.2 AAt 220 / 230 / 240V respectively | 46.7 / 44.9 / 42.9 AAt 220 / 230 / 240V respectivelyManual value · pending confirmation |
| Product dimensions (parameter table) | 390 × 320 × 112 mm | 535 × 462 × 117 mm |
| Net weight | 8 kg | 14.7 kg |
The 12.3kW manual lists 46.7 / 44.9 / 42.9A at 220 / 230 / 240V. These current values remain pending confirmation and should not be used to size AC wiring or protection.
LANTUVIA · 51.2V LiFePO₄
Discuss an HFP inverter with one of our five 51.2V LiFePO₄ batteries. Confirm the exact model, BMS communication, charging settings and system output for your project.
16.1 kWh Panda Edition

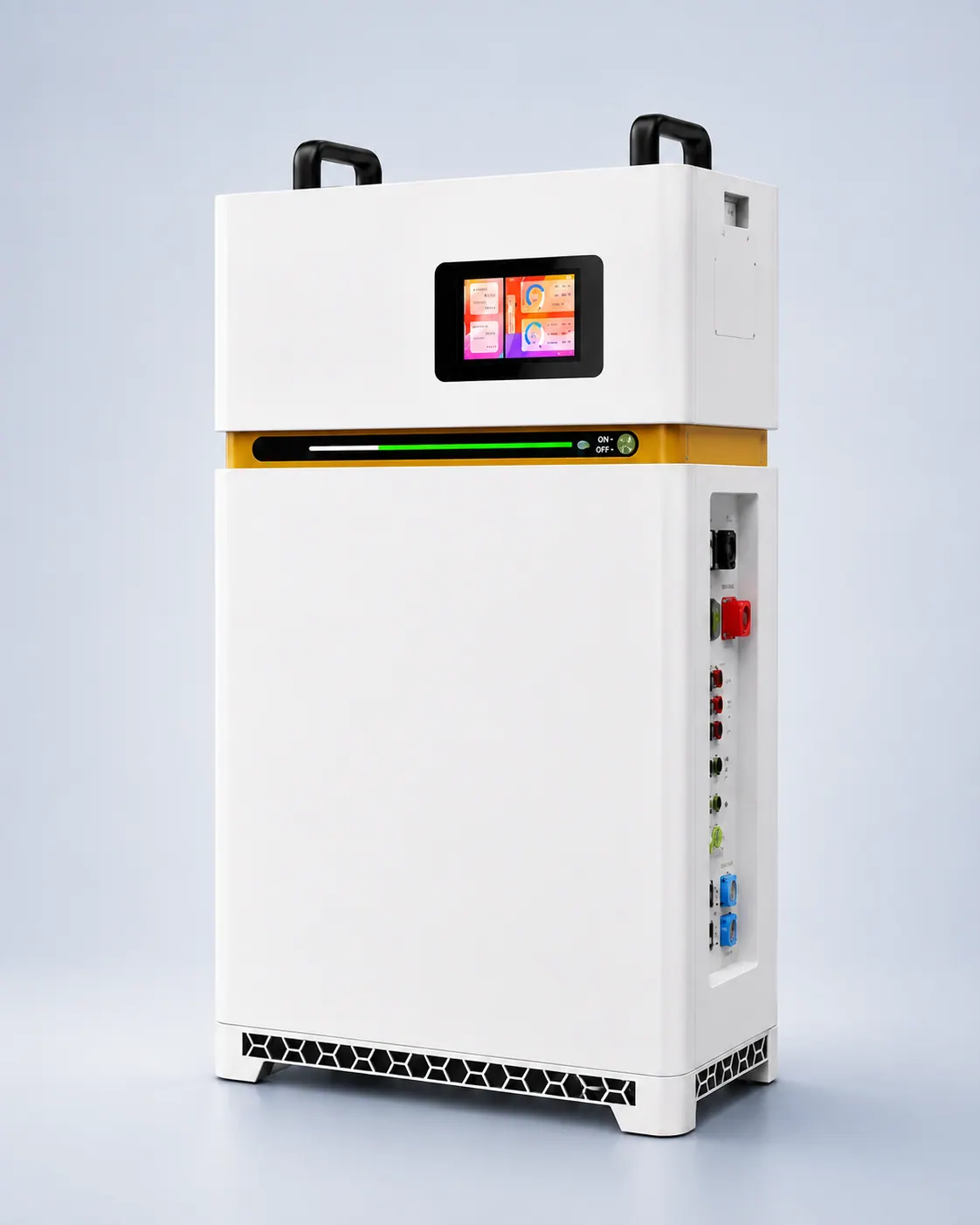

16.1 kWh Display Edition
30.1 kWh Panda Edition

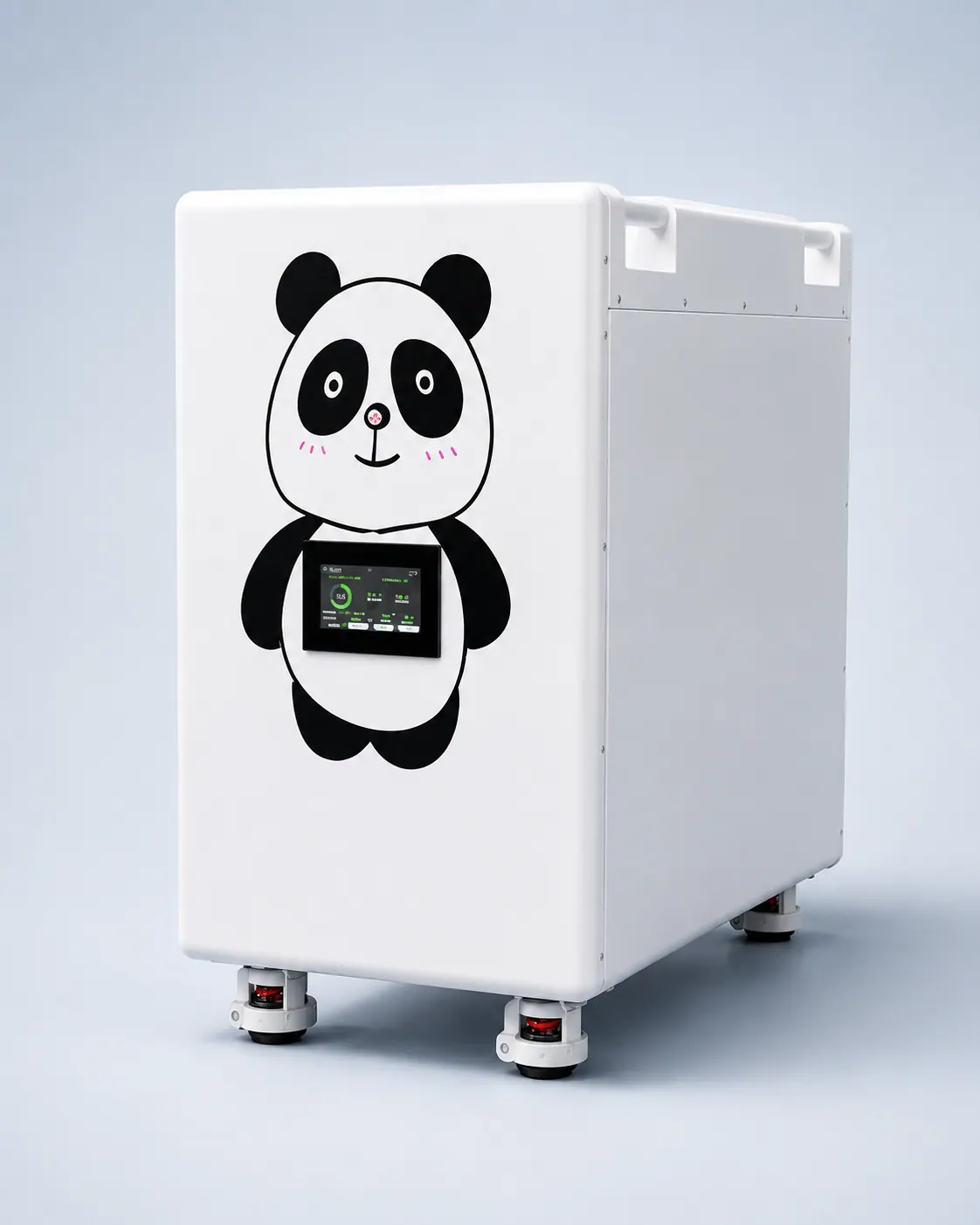

32.2 kWh Panda Edition
32.2 kWh Display EditionBattery capacity (kWh) and inverter output (kW) describe different things. Our battery data lists 195A continuous discharge, equivalent to 9.984kW DC at 51.2V before conversion losses.
A 12.3kW inverter rating does not establish 12.3kW AC output from a single battery. Ask us to confirm the complete battery, solar and utility configuration for your load.
LANTUVIA · Installer & distributor inquiries
Tell us the product, quantity and destination. We will use these details to respond to your inquiry.
